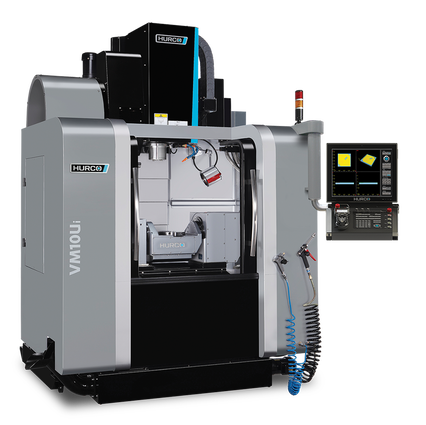

Hurco VM10Ui
5 Axis Movement: Trunnion Style Table size: Ø198 Max Table Load: 150kgs Travel (X,Y,Z): 533 x 406 x 482 Spindle Speed: 10,000 RPM Spindle Motor KW (1 min Duty Cycle): 11Kw Spindle: Big Plus Dual Contact, BT40 or CAT40 configuration ATC: 20 Stations Control: Winmax single screen Programming: NC, CAD/CAM or Conversational Operating Footprint: 3.3mtr x 3.4mtr (L x W) |
|

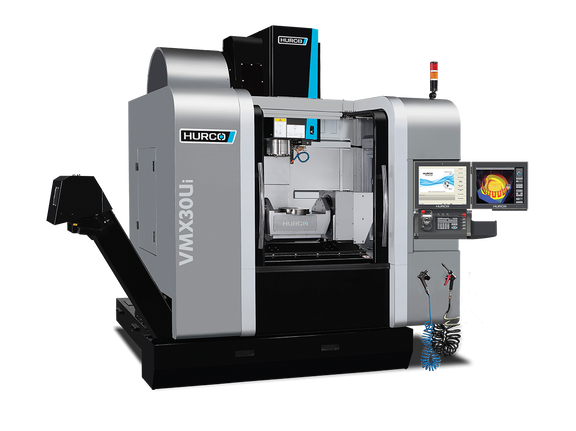

Hurco VMX30Ui / VMX30UDi
5 Axis Movement: Trunnion Style Table size: Ø248 Max Table Load: 200kgs Travel (X,Y,Z): 762 x 508 x 520 Spindle Speed: 12,000 RPM / 15,000 RPM (UDi) Spindle Motor KW (1 min Duty Cycle): 13.4Kw / 15KW (UDi) Spindle: Big Plus Dual Contact, BT40 or CAT40 configuration ATC: 40 Stations (60 stations optional) Control: Winmax dual screen Programming: NC, CAD/CAM or Conversational Operating Footprint: 4.0mtr x 4.1mtr (L x W) |
|

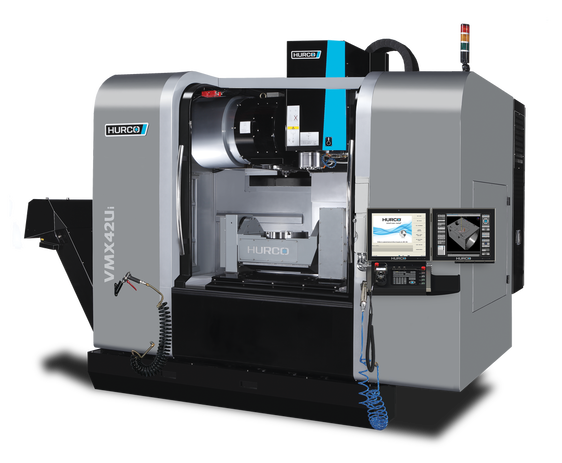

Hurco VMX42Ui / VMX42UDi
5 Axis Movement: Trunnion Style Table size: Ø398 Max Table Load: 250kgs Travel (X,Y,Z): 1067 x 610 x 520 Spindle Speed: 12,000 RPM / 15,000 RPM (UDi) Spindle Motor KW (1 min Duty Cycle): 18Kw / 15KW (UDi) Spindle: Big Plus Dual Contact, BT40 or CAT40 configuration ATC: 40 Stations (60 stations optional) Control: Winmax dual screen Programming: NC, CAD/CAM or Conversational Operating Footprint: 4.6mtr x 3.8mtr (L x W) |
|
VMX42SRTi
5 Axis Movement: Rotating C Axis Table and B Axis Swivel Head Spindle Table size: Ø600 Max Table Load: 1360kgs Max Rotational Table Load: 600kgs Travel (X,Y,Z): 1067 x 610 x 610 Spindle Speed: 12,000 RPM / 16,000 RPM (optional) Spindle Motor KW (1 min Duty Cycle): 36.5 Kw Spindle: Big Plus Dual Contact, BT40 or CAT40 configuration ATC: 40 Stations Control: Winmax dual screen Programming: NC, CAD/CAM or Conversational Operating Footprint: 5.0mtr x 3.8mtr (L x W) |
|

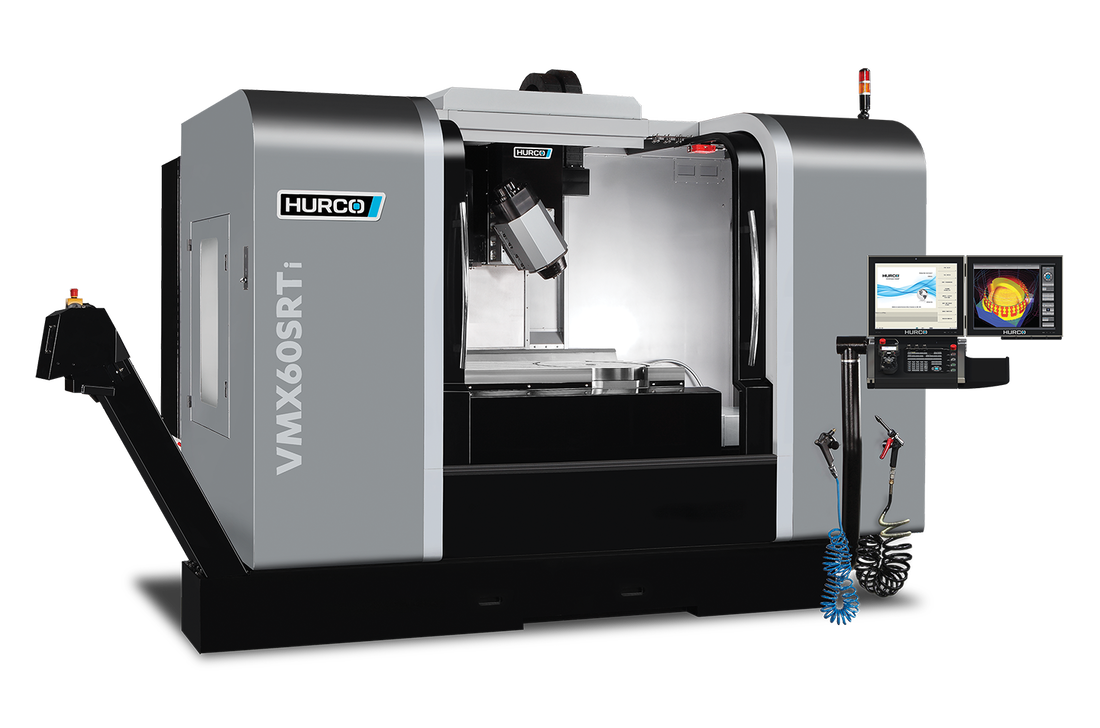

VMX60SRTi
5 Axis Movement: Rotating C Axis Table and B Axis Swivel Head Spindle Table size: Ø600 Max Table Load: 1360kgs Max Rotational Table Load: 600kgs Travel (X,Y,Z): 1524 x 660 x 610 Spindle Speed: 12,000 RPM / 16,000 RPM (optional) Spindle Motor KW (1 min Duty Cycle): 36 Kw Spindle: Big Plus Dual Contact, BT40 or CAT40 configuration ATC: 40 Stations Control: Winmax dual screen Programming: NC, CAD/CAM or Conversational Operating Footprint: 5.7mtr x 4.0mtr (L x W) |
|

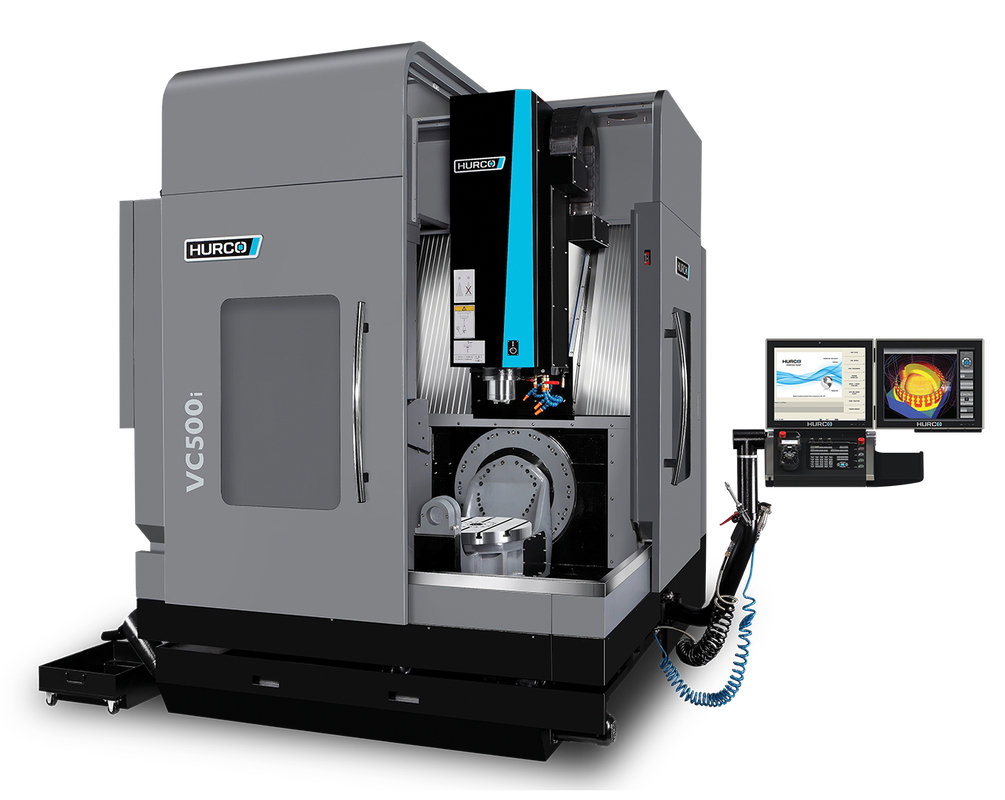

VC500i
5 Axis Movement: Cantilever Style Trunnion Table Table size: Ø500 Max Rotational Table Load: 250kgs Travel (X,Y,Z): 520 x 450 x 400 Spindle Speed: 12,000 RPM Spindle Motor KW (1 min Duty Cycle): 13 Kw Spindle: Big Plus Dual Contact, BT40 or CAT40 configuration ATC: 40 Stations Control: Winmax dual screen Programming: NC, CAD/CAM or Conversational Operating Footprint: 4.6mtr x 3.6mtr (L x W) |
|

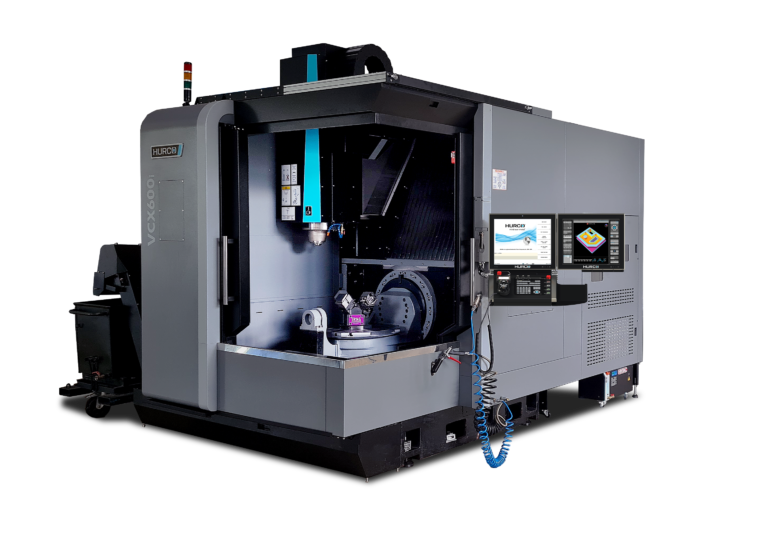

VCX600i
5 Axis Movement: Cantilever Style Trunnion Table Table size: Ø600 Max Rotational Table Load: 350kgs Travel (X,Y,Z): 820 x 550 x 500 Spindle Speed: 12,000 RPM Spindle Motor KW (1 min Duty Cycle): 16 Kw Spindle: Big Plus Dual Contact, BT40 or CAT40 configuration ATC: 40 Stations Control: Winmax dual screen Programming: NC, CAD/CAM or Conversational Operating Footprint: 4.6mtr x 4.3mtr (L x W) |
|

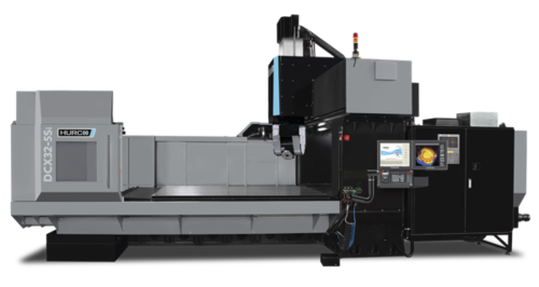

DCX 32-5Si
5 Axis Movement: Cytec 5 Axis Spindle Head (B and C Axis capabilities) Max Table Load: 11,000kgs Travel (X,Y,Z): 3200 x 2100 x 900 Spindle Speed: 18,000 RPM Spindle Motor KW (1 min Duty Cycle): 63 Kw Spindle: HSK 63A ATC: 40 Stations (60 optional) Control: Winmax dual screen Programming: NC, CAD/CAM or Conversational Operating Footprint: 10mtr x 6.9mtr (L x W) |
