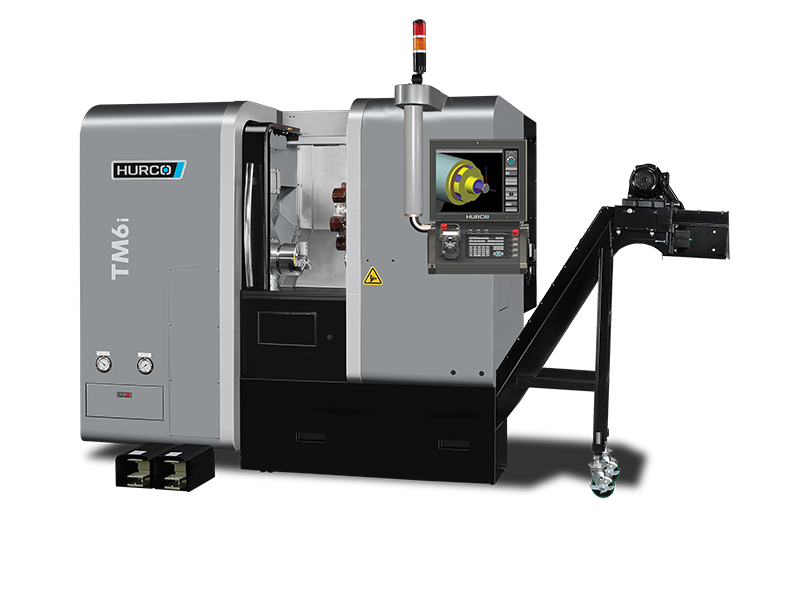

Hurco TM6i: 2 Axis Static Tooling Lathe

Max. Turning Diameter 316 mm
Max. Turning Length    340 mm
Max. Bar Capacity         45 mm
Max. Spindle Speed      6000 rpm
Spindle Power  13 kw
Tool Capacity   12 Stations
Control: Winmax single screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 3.8mtr x 2.6mtr (L x W)

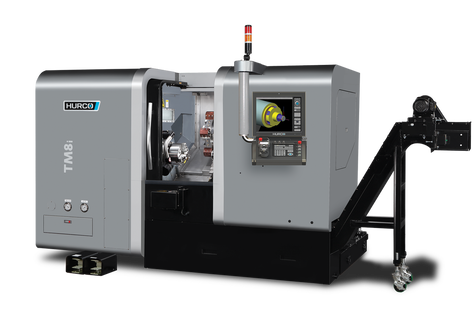

Hurco TM8i: 2 Axis Static Tooling Lathe

Max. Turning Diameter 356 mm
Max. Turning Length     525 mm
Max. Bar Capacity         63.5 mm
Max. Spindle Speed      4000 rpm
Spindle Power  23.2 kw
Tool Capacity   12 Stations
Control: Winmax single screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 4.3mtr x 2.75mtr (L x W)

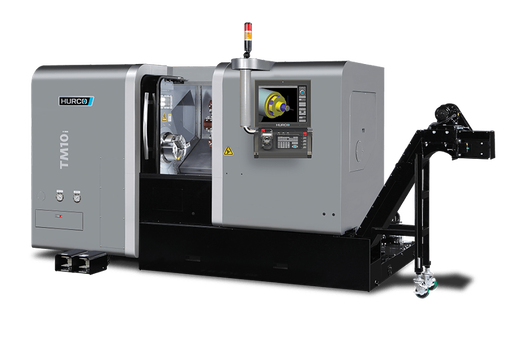

Hurco TM10i: 2 Axis Static Tooling Lathe

Max. Turning Diameter 450 mm
Max. Turning Length     760 mm
Max. Bar Capacity         181 mm
Max. Spindle Speed      3000 rpm
Spindle Power  22 kw
Tool Capacity   12 Stations
Control: Winmax single screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 4.9mtr x 2.9mtr (L x W)
​

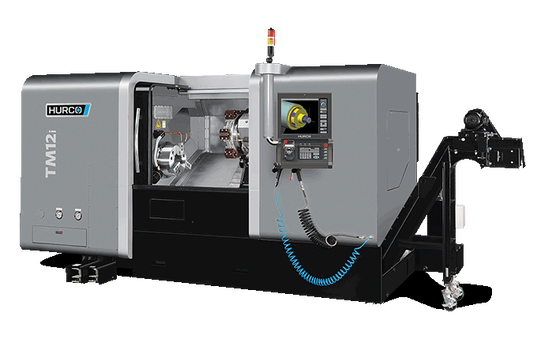

Hurco TM12i: 2 Axis Static Tooling Lathe

Max. Turning Diameter 510 mm
Max. Turning Length     1000 mm
Max. Bar Capacity         104 mm
Max. Spindle Speed      2800 rpm
Spindle Power  55Kw
Tool Capacity   12 Stations
Control: Winmax single screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 4.9mtr x 3.4mtr (L x W)

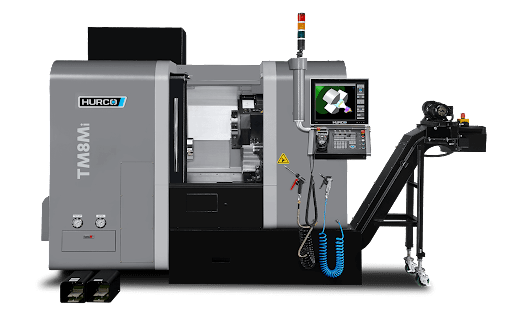

Hurco TM8Mi: Live Tooling Lathe with C Axis

Max. Turning Diameter 256 mm
Max. Turning Length     497 mm
Max. Bar Capacity         64.5 mm
Max. Spindle Speed      4000 rpm
Spindle Power  19KW
Tool Capacity   12 Stations
Live Tool Spindle Speed: 5000rpm
Live Tool Spindle Power: 4.6Kw
Control: Winmax single screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 4.8mtr x 2.85mtr (L x W)

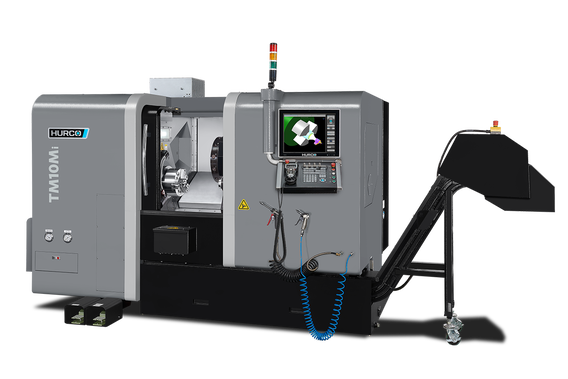

​Hurco TM10Mi: Live Tooling Lathe with C Axis

Max. Turning Diameter 304 mm
Max. Turning Length     790 mm
Max. Bar Capacity         81 mm
Max. Spindle Speed      3000 rpm
Spindle Power  40 kw
Tool Capacity   12 Stations
Live Tool Spindle Speed: 4000rpm
Live Tool Spindle Power: 6.6Kw
Control: Winmax single screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 5.15mtr x 3.2mtr (L x W)

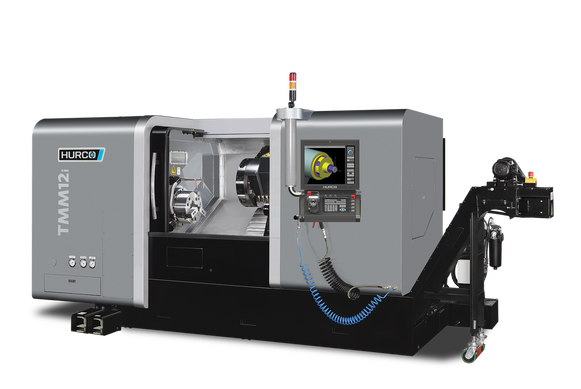

​Hurco TM12Mi: Live Tooling Lathe with C Axis

Max. Turning Diameter 395 mm
Max. Turning Length     974 mm
Max. Bar Capacity         104 mm
Max. Spindle Speed      2800 rpm
Spindle Power  55Kw
Tool Capacity   12 Stations
Live Tool Spindle Speed: 4000rpm
Live Tool Spindle Power: 6.6Kw
Control: Winmax single screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 5.95mtr x 3.4mtr (L x W)

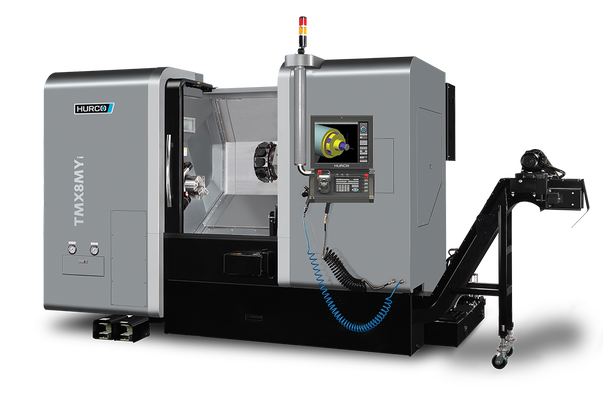

​Hurco TMX8MYi: Live Tooling Lathe with Y Axis

Max. Turning Diameter 276 mm
Max. Turning Length     527 mm
Max. Bar Capacity         64.5 mm
Max. Spindle Speed      4500 rpm
Spindle Power  27.8 kw
Tool Capacity   12 Stations
Live Tool Spindle Speed: 5000rpm
Live Tool Spindle Power: 6.4Kw
Control: Winmax single screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 5.6mtr x 3.4mtr (L x W)

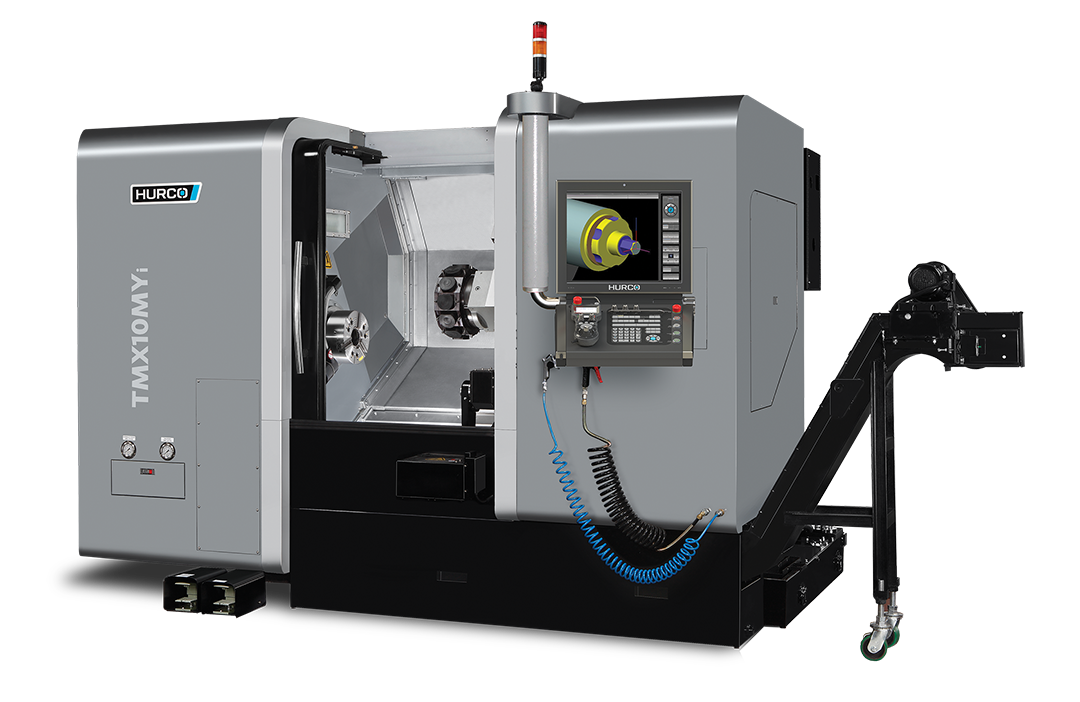

​Hurco TMX10MYi: Live Tooling Lathe with Y Axis

Max. Turning Diameter 315 mm
Max. Turning Length     627 mm
Max. Bar Capacity         78 mm
Max. Spindle Speed      3500 rpm
Spindle Power  27.8 kw
Tool Capacity   12 Stations
Live Tool Spindle Speed: 5000rpm
Live Tool Spindle Power: 6.4Kw
Control: Winmax single screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 5.4mtr x 3.4mtr (L x W)

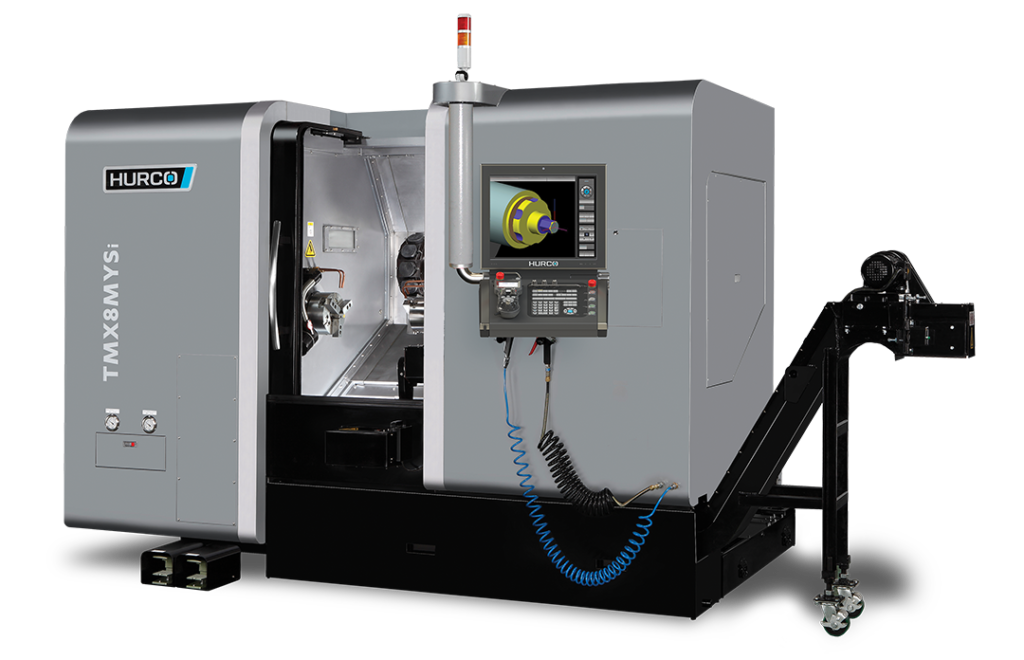

​Hurco TMX8MYSi: Live Tooling Lathe with Y Axis and Sub Spindle

Max. Turning Diameter 276 mm
Max. Turning Length     527 mm
Max. Bar Capacity         64.5 mm
Max. Main Spindle Speed      4500 rpm
Main Spindle Power  28 kw
Max Sub Spindle Speed: 6000 rpm
Max Sub Spindle Power: 15KW
Tool Capacity   12 Stations
Live Tool Spindle Speed: 4000 rpm
Live Tool Spindle Power: 6.4Kw
Control: Winmax single screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 5.6mtr x 3.5mtr (L x W)

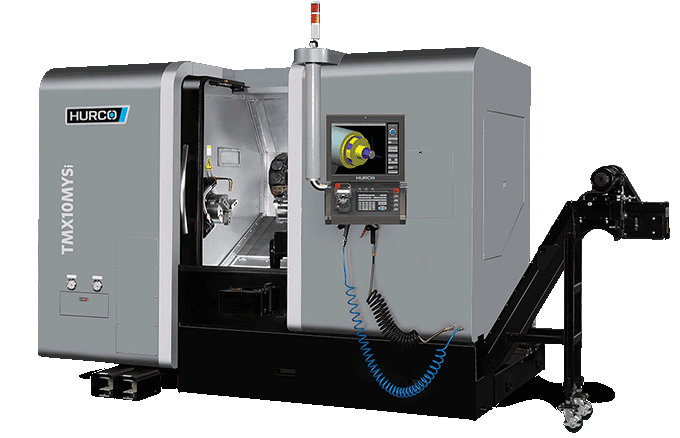

​Hurco TMX10MYSi: Live Tooling Lathe with Y Axis and Sub Spindle

Max. Turning Diameter 315 mm
Max. Turning Length     627 mm
Max. Bar Capacity         78 mm
Max. Spindle Speed      3500 rpm
Spindle Power  27.8 kw
Max Sub Spindle Speed 6000 rpm
​Max Sub Spindle Power 15KW
Tool Capacity   12 Stations
Live Tool Spindle Speed: 4000rpm
Live Tool Spindle Power: 6.4Kw
Control: Winmax single screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 5.4mtr x 3.5mtr (L x W)
