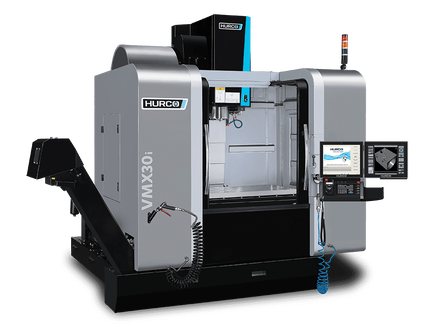

Hurco VMX30Ti  (VMX30Di Models Also Available)

Travel (X,Y,Z): 762 x 508 x 610
Spindle Speed: 12,000 RPM / 15,000 RPM (VMX42Di)
Spindle Motor KW (1 min Duty Cycle): 13.4Kw / 15KW (VMX42Di)
Spindle: Big Plus Dual Contact, BT40 or CAT40 configuration
ATC: 30 Stations (40 stations optional)
Control: Winmax dual screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 3.0mtr x 2.9mtr (L x W)

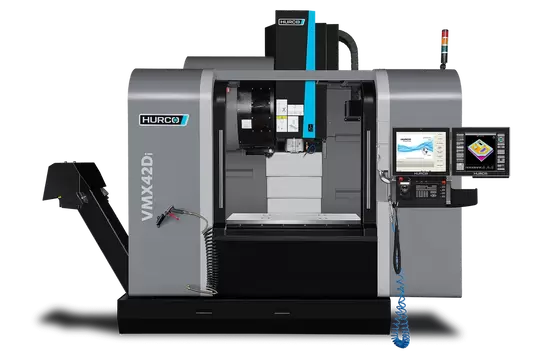

​Hurco VMX42Ti  (VMX42Di Models Also Available)

Travel (X,Y,Z): 1066 x 610 x 610
Spindle Speed: 12,000 RPM / 15,000 RPM (VMX42Di)
Spindle Motor KW (1 min Duty Cycle): 18Kw / 15KW (VMX42Di)
Spindle: Big Plus Dual Contact, BT40 or CAT40 configuration
ATC: 30 Stations (40 stations optional)
Control: Winmax dual screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 3.5mtr x 3.2mtr (L x W)

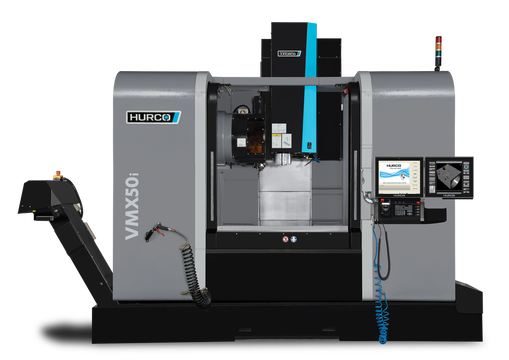

​Hurco VMX50Ti  (VMX50Di Models Also Available)
                              (VMX50Ti 50 Taper Version Also Available)

Travel (X,Y,Z): 1270 x 660 x 610
Spindle Speed: 12,000 RPM / 15,000 RPM (VMX50Di) / 8,000 (50 Taper)
Spindle Motor KW (1 min Duty Cycle): 18Kw / 22KW (Di) / 22KW (50 Taper)
Spindle: Big Plus Dual Contact, BT40/CAT40 or 50 Taper Version
ATC: 30 Stations (40 stations optional)
Control: Winmax dual screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 4.4mtr x 3.4mtr (L x W)

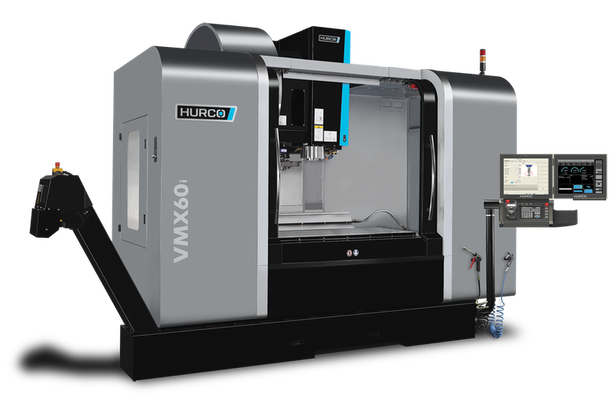

​Hurco VMX60Ti  (VMX60Di Models Also Available)
                              (VMX60Ti 50 Taper Version Also Available)

Travel (X,Y,Z): 1524 x 660 x 610
Spindle Speed: 12,000 RPM / 15,000 RPM (VMX60Di) / 8,000 (50 Taper)
Spindle Motor KW (1 min Duty Cycle): 18Kw / 22KW (Di) / 22KW (50 Taper)
Spindle: Big Plus Dual Contact, BT40/CAT40 or 50 Taper Version
ATC: 30 Stations (40 stations optional)
Control: Winmax dual screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 4.8mtr x 3.4mtr (L x W)

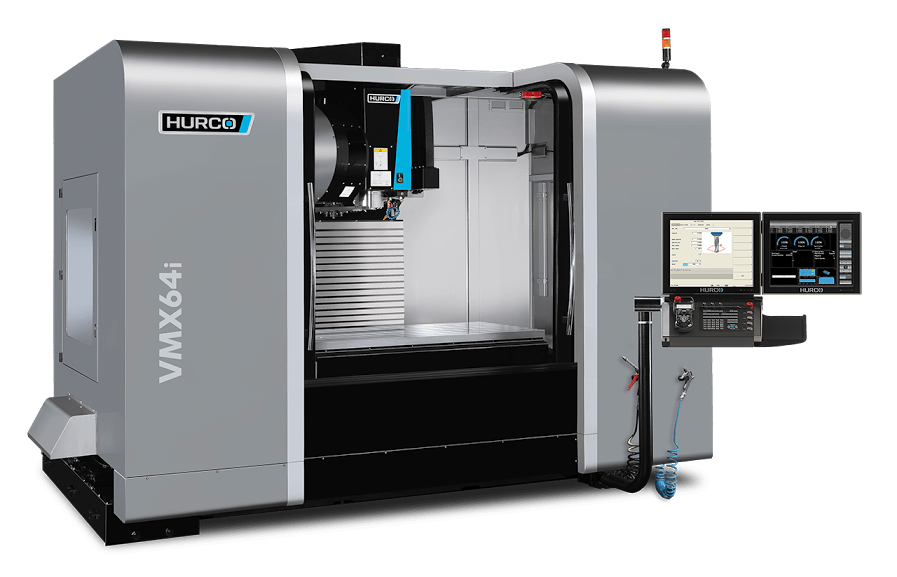

​​Hurco VMX64Ti  (50 Taper Version Also Available)

Travel (X,Y,Z): 1625 x 863 x 762
Spindle Speed: 12,000 RPM / 8,000 (50 Taper)
Spindle Motor KW (1 min Duty Cycle): 18Kw / 22KW (50 Taper)
Spindle: Big Plus Dual Contact, BT40/CAT40 or 50 Taper Version
ATC: 30 Stations (40 stations / 96 stations optional)
Control: Winmax dual screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 5.1mtr x 4.2mtr (L x W)

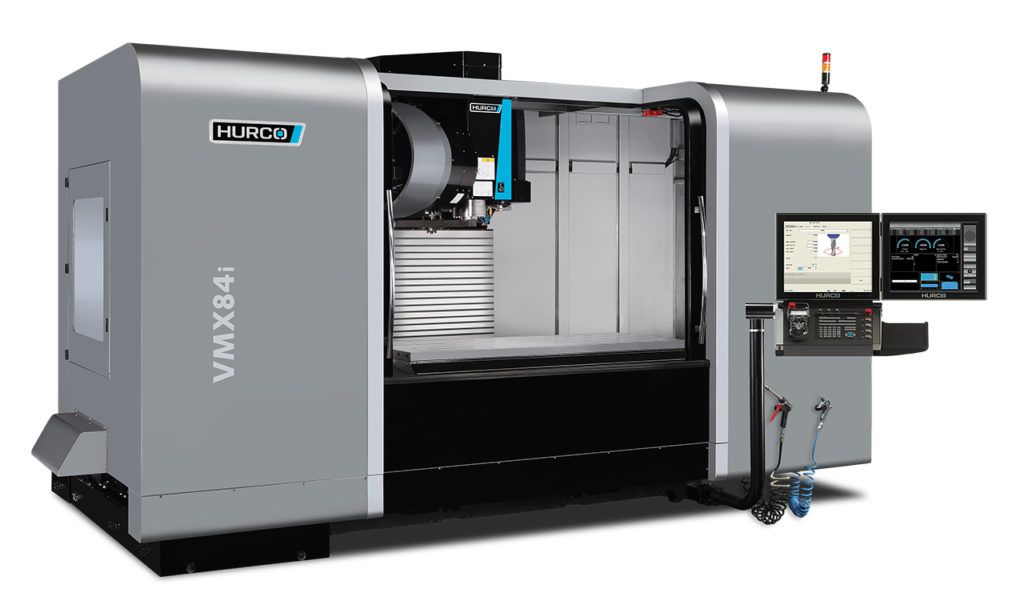

​Hurco VMX84Ti  (50 Taper Version Also Available)

Travel (X,Y,Z): 2134 x 864 x 762
Spindle Speed: 12,000 RPM / 8,000 (50 Taper)
Spindle Motor KW (1 min Duty Cycle): 18Kw / 22KW (50 Taper)
Spindle: Big Plus Dual Contact, BT40/CAT40 or 50 Taper Version
ATC: 40 Stations (96 stations optional)
Control: Winmax dual screen
Programming: NC, CAD/CAM or Conversational
Operating Footprint: 6.0mtr x 4.1mtr (L x W)
